(1-10%) DOSATRON COOLANT MIXING PANEL
$2,995.00
In stock
4
People watching this product now!
Fast
Shipping
Industry Leading Products
Premier
Support
American Innovation
Description
Turnkey system for blending coolant
with water – 36” x 24” panel

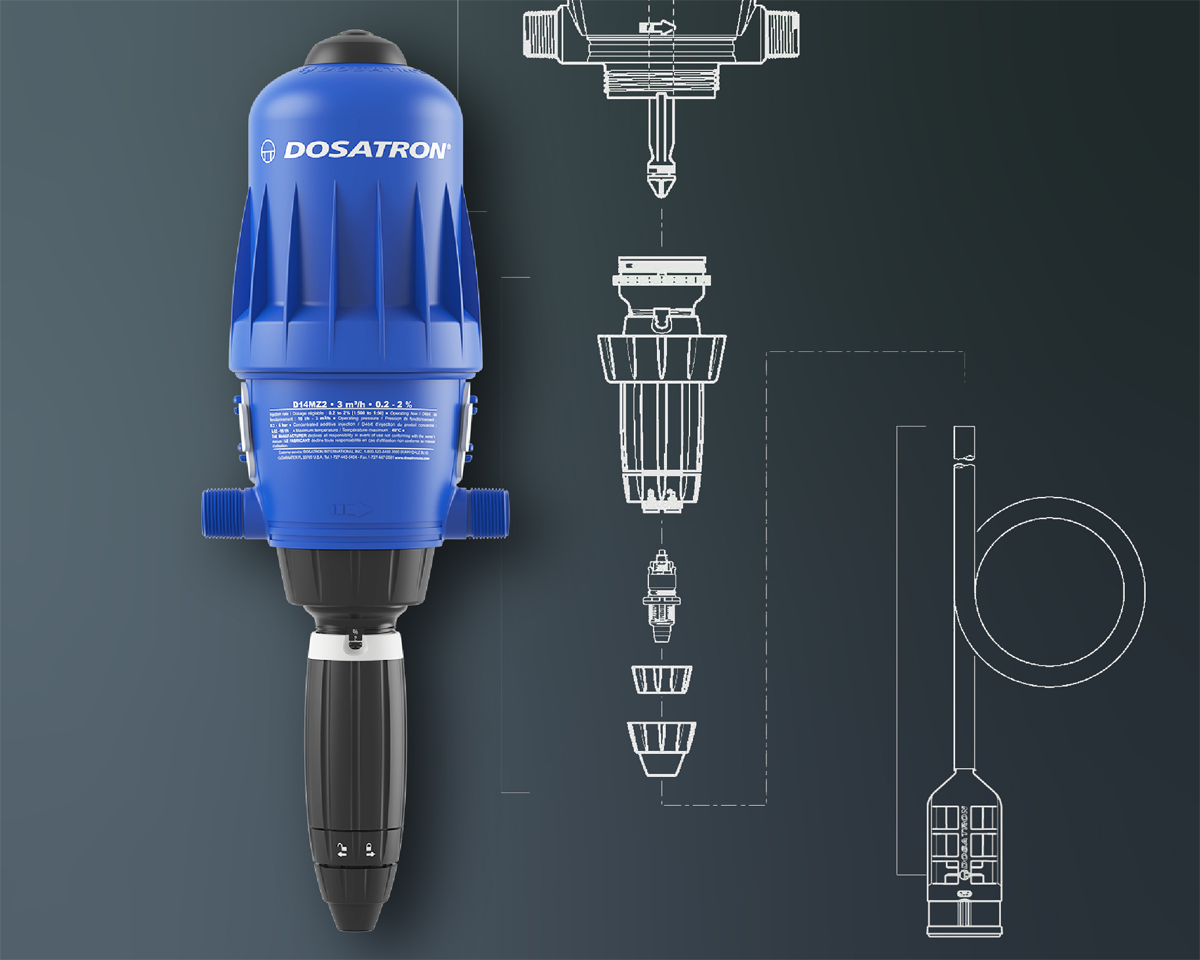

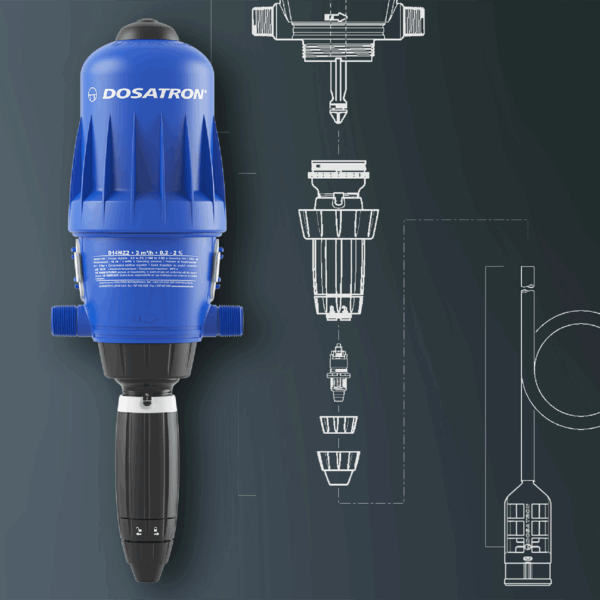

Water-powered chemical metering
pump with gas style nozzle and
required accessories
Simple to install and commission 1-10% concentration adjustments
Conserves time and energy Minimizes employee exposure
and spills
Dosatron Pre-Plumbed Poly Panel 36”X24” (1) D14MZ10VVFII 1:100 to 1:10
(1) 200 Mesh Filter
(1) Pressure Regulator with Gauge
(1) Flow Restrictor (1) Check Valve (1) Sample Port (2) 3?4” Ball Valves Control LD38844
Attributes
| Weight | 25 lbs |
|---|---|
| Dimensions | 40 × 28 × 12 in |
Reviews (1)
1 review for (1-10%) DOSATRON COOLANT MIXING PANEL
Documenttion
All products
Jake Middleton –
Excellent solution for mixing coolant. We have a few of these. Some are plumbed to different machines and we have one for filling up buckets. It came pre-assembled, all we had to do was mount it on the wall, hook water up to it and drop the pickup tube in our concentrate drum. Changing output % is easy, just turn the collar. It seems really well built.
Easy installation
there are some mounting pieces in the box to hold it off the wall we didn't find until after we made our own. Our fault but maybe they should tape it to the panel or something.
